下面的内容是对于JD-D 多功能喷油泵试验台的使用注意事项阐述,所展示的喷油泵试验台都是现场拍摄,提供的内容都是经过泰安精动实验设备有限公司高压共轨试验台厂家经验所得,请点击进入查看更多机油泵试验台的相关行业信息吧。
喷油泵试验台
产品介绍:
本主机变频调速,转速任意预置,数字表显示转速、计数、油温、档位。
功能介绍:
01. 喷油泵试验台测试不同转速下的各缸供油量
02. 静态检查各缸供油的时间
03. 检查调速器性能
04. 分配泵电磁阀的试验
05. 检查气动调速器性能
06. 检查增压补偿器性能
07. 检查分配泵的输油供油能力
08. 测量分配泵泵体内压
09. 检查气膜调速器负压性能
10. 进行喷油泵的密封性试验

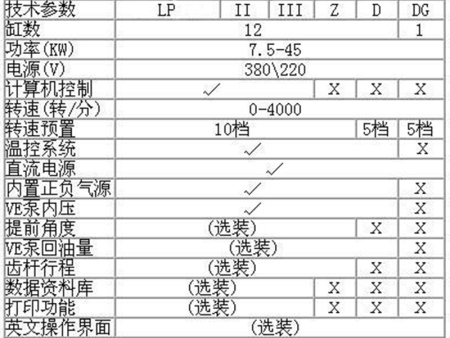

主要技术参数:
01.量筒:45ml量筒两套;
02.燃油箱容积:60L;
03.油温自动控制:40±2℃;
04.试验油滤油精度:5μ;
05.直流电压12V和24V;
06.供油压力:低压:0~0.4Mpa,高压:0~4Mpa;
07.泵体内压显示:0~0.16Mpa及0~1.6Mpa;
08.气压显示:正压:0~0.3Mpa负压:-0.03~0Mpa;
09.转速预置:0~4000RPM可任意预置;
10.中心高:125MM;
11.飞轮惯量:0.8KG.M2;
12.输出功率:11-55KW
泰安市精动实验设备有限公司,JD-D 多功能喷油泵试验台
电控试验台的特点:
喷油泵试验台在运行过程中,需要严格按照说明来进行,目前已经出现了电子调速的设备,减少了人力,提升了价格。2020年,各个厂家又研发出了使用皮带轮来实现转速的特殊试验台,结构简单,使用方便,而且转动速率较高,变速范围广,使用的时候较为稳定。
Product introduction:
The main machine of this test-bed is variable-frequency speed regulation, the speed is preset arbitrarily, and the digital meter displays the speed, count, oil temperature and gear.
Function introduction:
01. The fuel injection pump test bench tests the fuel supply of each cylinder at different speeds
02. Statically check the oil supply time of each cylinder
03. Check the governor performance
04. test of distribution pump solenoid valve
05. Check the performance of pneumatic governor
06. Check the performance of boost compensator
07. Check the oil delivery capacity of the distribution pump
08. Measure the internal pressure of the distribution pump
09. Check the negative pressure performance of the air film governor
10. Conduct the sealing test of the fuel injection pump
Main technical parameters:
01. Measuring cylinder: two sets of 45ml measuring cylinders;
02. Fuel tank volume: 60L;
03. Automatic oil temperature control: 40 ± 2 ℃;
04. Oil filtering accuracy of test oil: 5 μ;
05. DC voltage 12V and 24V;
06. Oil supply pressure: low pressure: 0~0.4mpa, high pressure: 0~4mpa;
07. Pump body pressure display: 0~0.16mpa and 0~1.6mpa;
08. Air pressure display: positive pressure: 0~0.3mpa negative pressure: -0.03~0mpa;
09. Speed preset: 0~4000rpm can be preset arbitrarily;
10. Center height: 125mm;
11. Flywheel inertia: 0.8kg M2;
12. Output power: 11-55kw
Jd-d multifunctional fuel injection pump test bench, Tai'an Jingdong Experimental Equipment Co., Ltd
Features of electric control test bench:
During the operation of the fuel injection pump test-bed, it needs to be carried out in strict accordance with the instructions. At present, electronic speed regulation equipment has appeared, which reduces manpower and increases the price of the test-bed. In 2020, various manufacturers have developed a special test-bed using belt pulley to realize speed, which is simple in structure, easy to use, high in rotation speed, wide in speed range, and stable in use.
